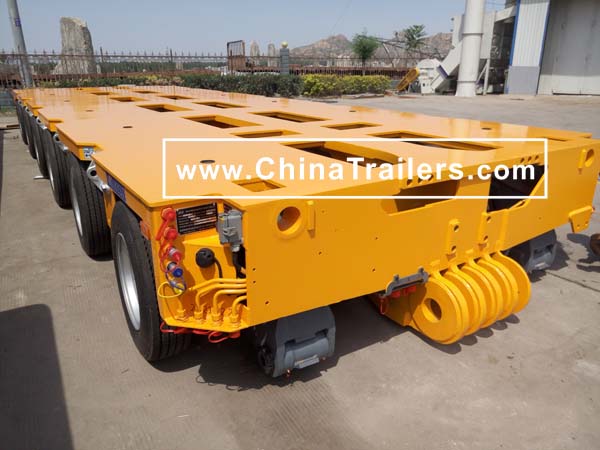

• Goldhofer model Modular Trailer, www.chinatrailers.com
  • Goldhofer model Modular Trailer, www.chinatrailers.com
  • Goldhofer model Modular Trailer, www.chinatrailers.com
G model Heavy-duty modules (ball-bearing race ring)

ChinaTrailers manufacture G model Modular Trailer can be Fully Compatible with the original Germany THP/SL module and self propelled PST/SL

Capacity 45 tons/axle line, 1,175 ± 300 mm height and 2,990 mm width, axle base 1,500 mm with S690 high tensile structure steel, robust and durable construction with high bending moment, high concentrated load bearing capacity

Get in Touch
Capacity 45 Tons/axle line @0.5km/h
Dead weight 3.5 Tons/axle line
Material S690 high tensile steel
Platform height (mm) 1,175 ± 300
Wheelbase (mm) 1,500
Tire 215/75 R17.5   8 tires / axle line
Approach / Departure angle 25° / 28°
Support mode of platform 3 points and 4 points
Max.steering angle of first wheel + / – 55° in all ride heights
Technical Parameters Goldhofer heavy duty modules
Speed (Km/h) 0.5 5 10 20 30 40 50
Axle load (Tons) 45 36.6 31.4 26.1 21.8 20.0 18.4

• Fully coupled with original Goldhofer THP/SL modular trailer
• Length and cross combination module
• Box-shaped center frame with integrated air and hydraulic oil tank
• High point load in the center tube and the closed outer fields
• Front and rear bolt-clutch for longitudinal combinations
• Pendant axle aggregate at swivel head mounted the vehicle frame
• Hydro-pneumatic gas pressure accumulator suspension
• Hose rupture safety valve on all axle aggregates
• Integrated Chassis, hydro-mechanical 2-circuit all wheel steering
• Maximum steering + / – 55° in all ride heights
• Steering in middle 1 pair of integrated steering cylinder in frame
• 2-line all-wheel air brakes and spring-loaded parking brake
• Complete 4-way piping for optimum combination of the modules
